6200 Sliding
Sliding system for moderate climates, with 1.25 mm profile thickness and glazing capacity up to 15 mm.
6200 Sliding
A practical solution for compact sliding openings, with double- or triple-track withfigurations and a double-window option.
Thermal transmittanceUw ≥ 3,2 (W/m²K)
Acoustic insulationRw up to 35 dB
Air permeabilityClass 3
WatertightnessClass 7A
Wind resistanceClass C3
Reference test AEV 1,12 x 1,15 m / 2 sashes
System data 6200 Sliding
Sections
Sections Frame 60 mm · Sash 22 mm
Profile thickness Window 1.25 mm
Glazing Max. 15 mm · Min. 4 mm
Max. sash dimensions Window: W 800 mm · H 1600 mm / Balwithy door: W 800 mm · H 2100 mm
Max. sash weight 80 kg
Note Check maximum weight and dimensions according to typology
Opening possibilities
Double- and triple-track sliding. Double-window option.
Gallery 6200 Sliding

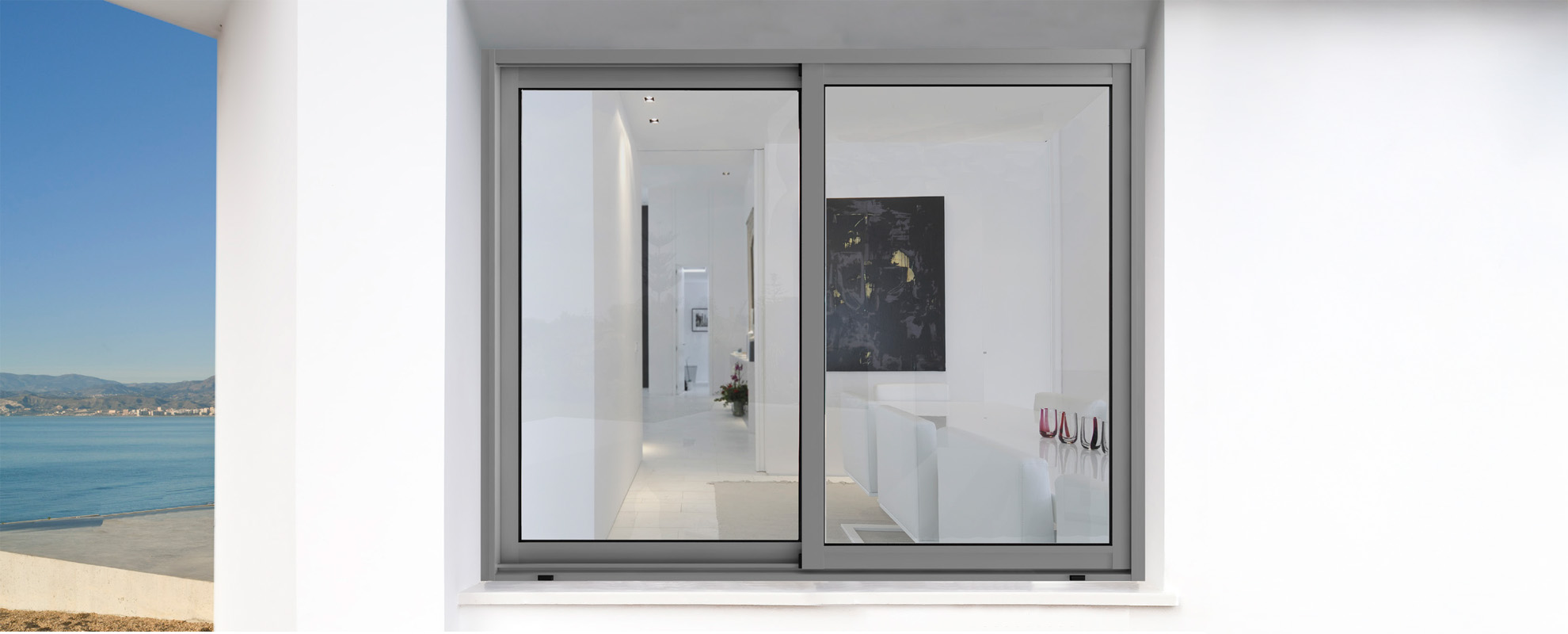

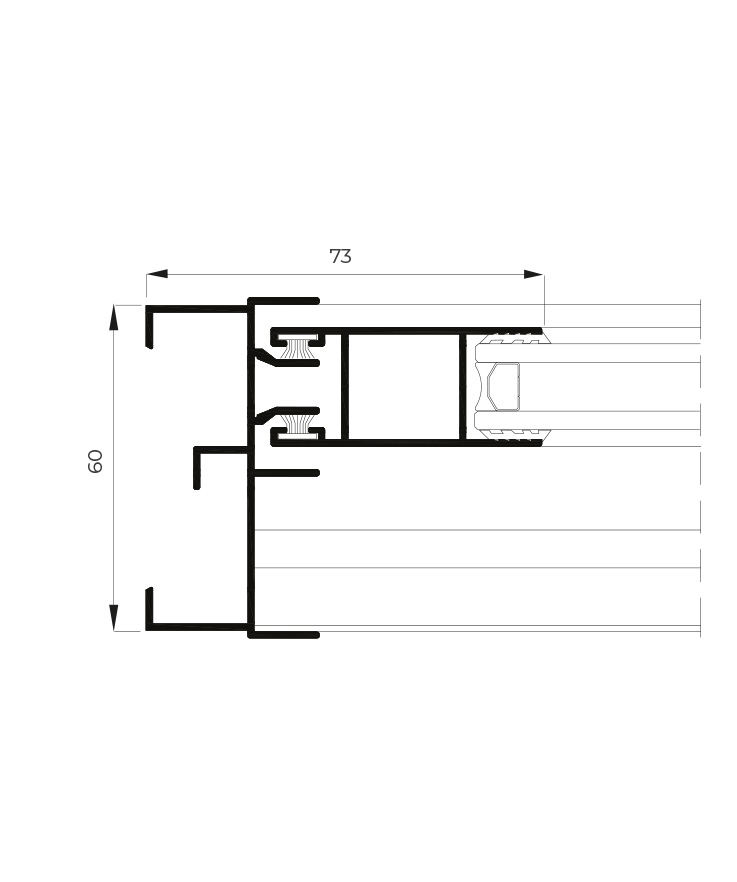

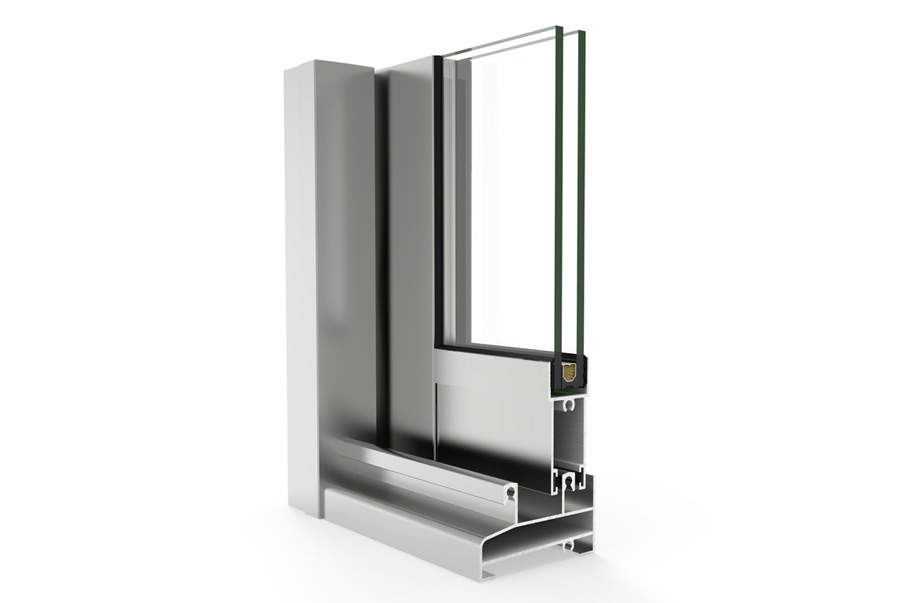

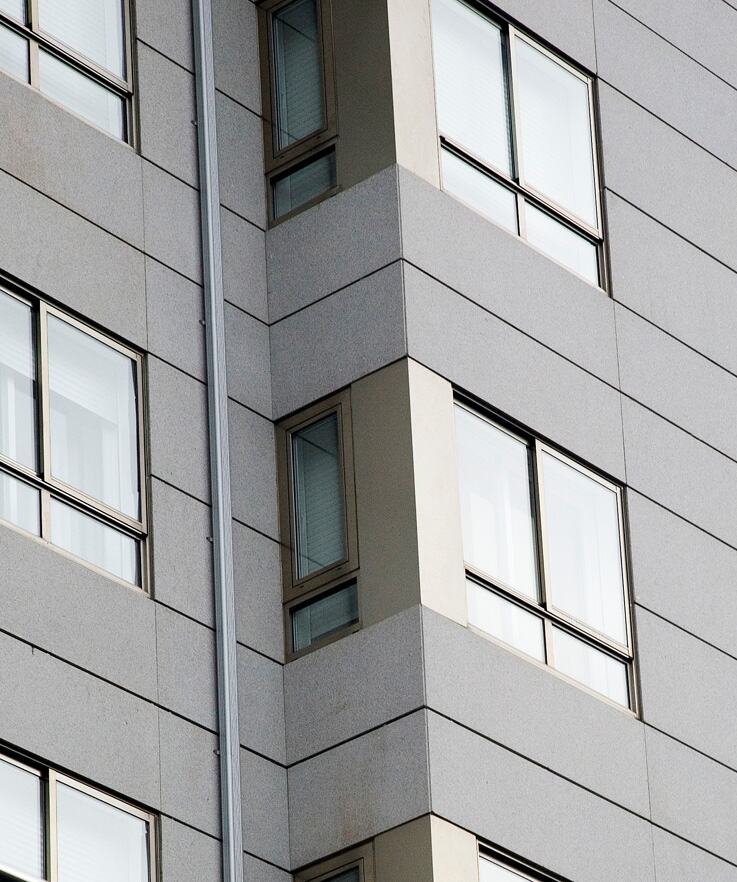

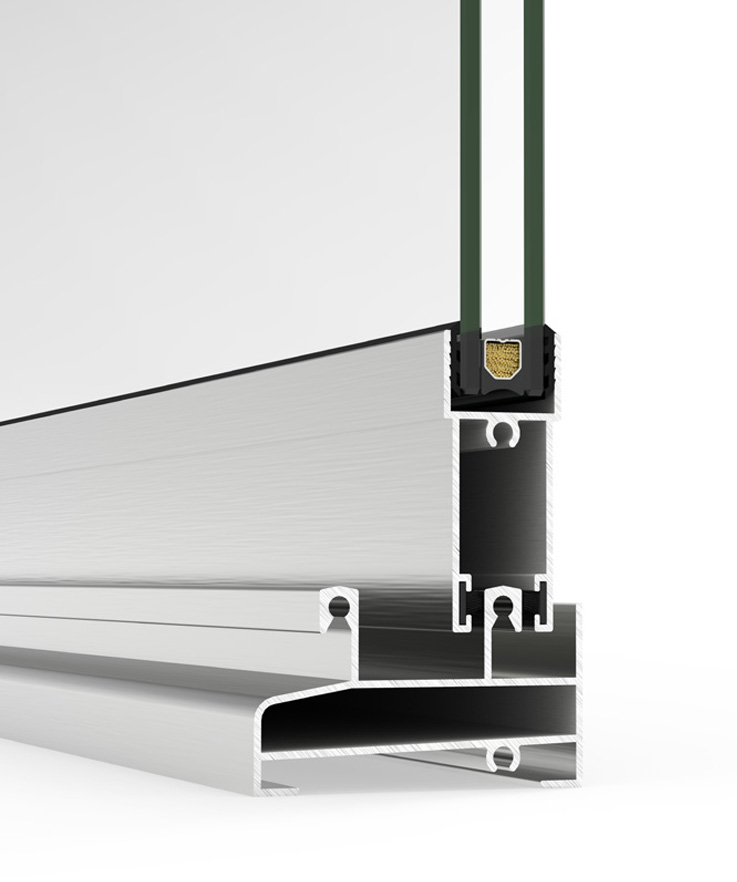

Images of the 6200 Sliding system with architectural application, section details and opening possibilities.
