Cortizo Isolation Roller Shutter Box
Shutter box designed exclusively for CORTIZO PVC systems, developed to complete high-efficiency enclosures with excellent thermal insulation, acoustic attenuation and a refined design for low-energy homes.
Cortizo Isolation shutter box · Features
Shutter box designed exclusively for CORTIZO PVC systems, developed to complete high-efficiency enclosures with excellent thermal insulation, acoustic attenuation and a refined design for low-energy homes.
Air permeabilityClass 4
Water tightnessClass E2400
Wind resistanceClass 3000 Pa (P3)
Reference test AEV 200 x 230 mm and 160 x 180 mm, with 1230 mm length.
Cortizo Isolation shutter box · System data

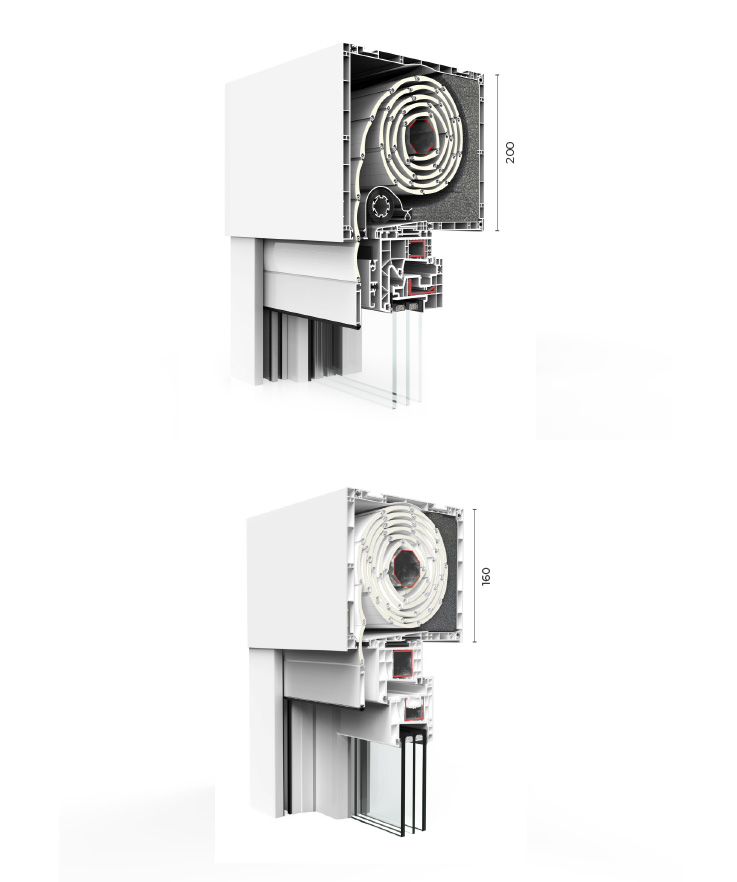

Cajón 200 mm
Thermal transmittance Usb ≥ 0,66 (W/m²K)
Acoustic insulation Rw up to 44 dB
AEV 200 x 230 mm · 1230 mm
Cajón 160 mm
Thermal transmittance Usb ≥ 0,97 (W/m²K)
Acoustic insulation Rw up to 47 dB
AEV 160 x 180 mm · 1230 mm
System details
Cortizo Isolation shutter box
Shutter box designed exclusively for CORTIZO PVC systems, developed to complete high-efficiency enclosures with excellent thermal insulation, acoustic attenuation and a refined design for low-energy homes.
