COR Galicia C16
← Back to hinged windows and doors Hinged windows and doors

COR Galicia C16

Composite thermal-break window combining the excellent exterior performance of aluminium with the warmth and design of timber on the inside. The external face can be finished in any option from the extensive CORTIZO powder-coated or anodised range. The internal face is available in American oak, sapelly, pinus mellis and other options on request, always using transparent satin ecological varnishes without solvents.

Features

Aluminium-timber composite window with thermal break

COR Galicia C16 combines a high-performance aluminium exterior profile with a natural timber inner face, providing insulation, durability and a warm aesthetic for homes and refurbishment projects.

Thermal transmittanceUw ≥ 1,1 W/m²K
Acoustic insulationRw 40 dB
Air permeabilityClass 4
Water tightnessClass E1050
Wind resistanceClass C5
AEV reference test 1.23 x 1.48 m / 1 sash.
System technical information

Main technical data

Sections and capacity

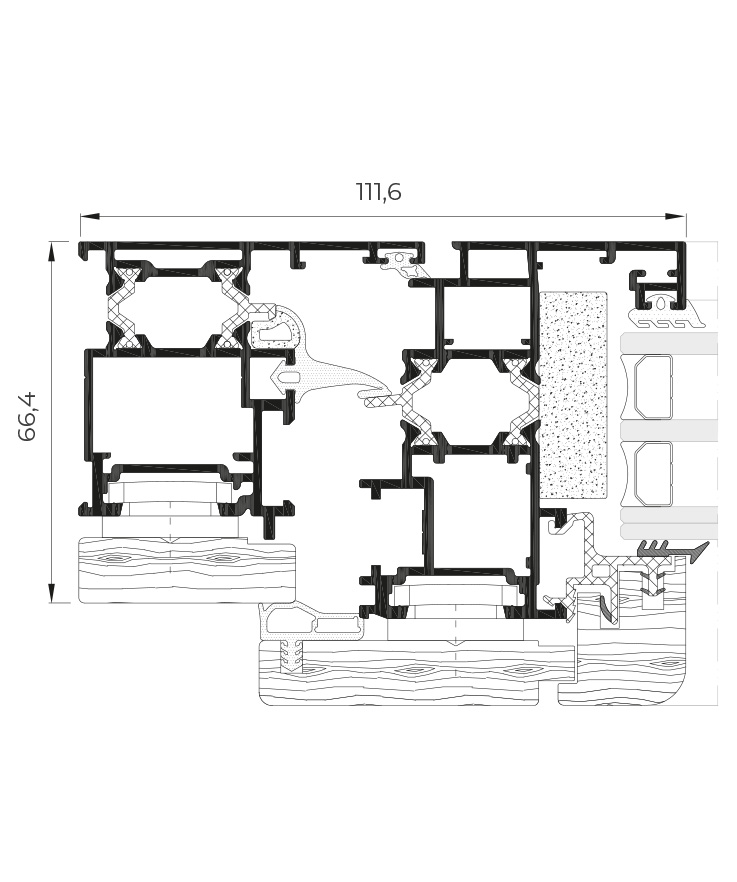

SectionsFrame 66,4 mm · Sash 85,3 mm
Polyamide strip lengthFrame 14,8 mm · Sash 16 mm
Profile thicknessWindow 1,5 mm · Door 1,6 mm
GlazingSash: max. 40 mm / min. 18 mm · Fixed: max. 30 mm / min. 8 mm
Maximum sash dimensionsWidth 1400 mm · Height 2400 mm
Maximum sash weight100 kg
Check maximum weight and dimensions according to typology.

Options

Security hardwareSecurity hardware

Opening possibilities

Opening possibilities COR Galicia C16
Inward opening: side-hung, tilt-and-turn, tilt-and-slide and bottom-hung.
System gallery

System gallery

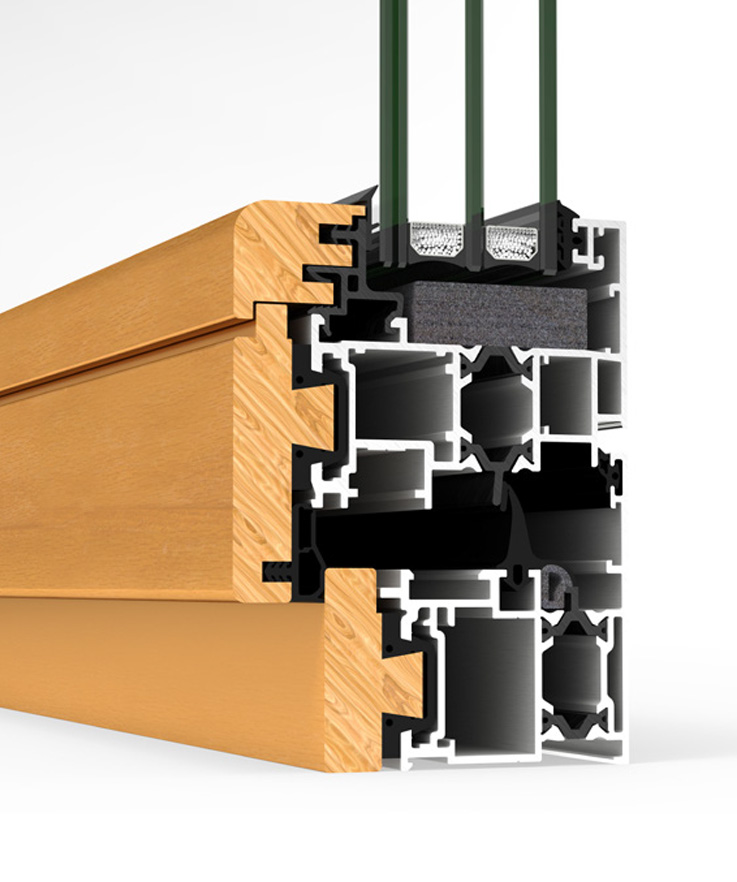

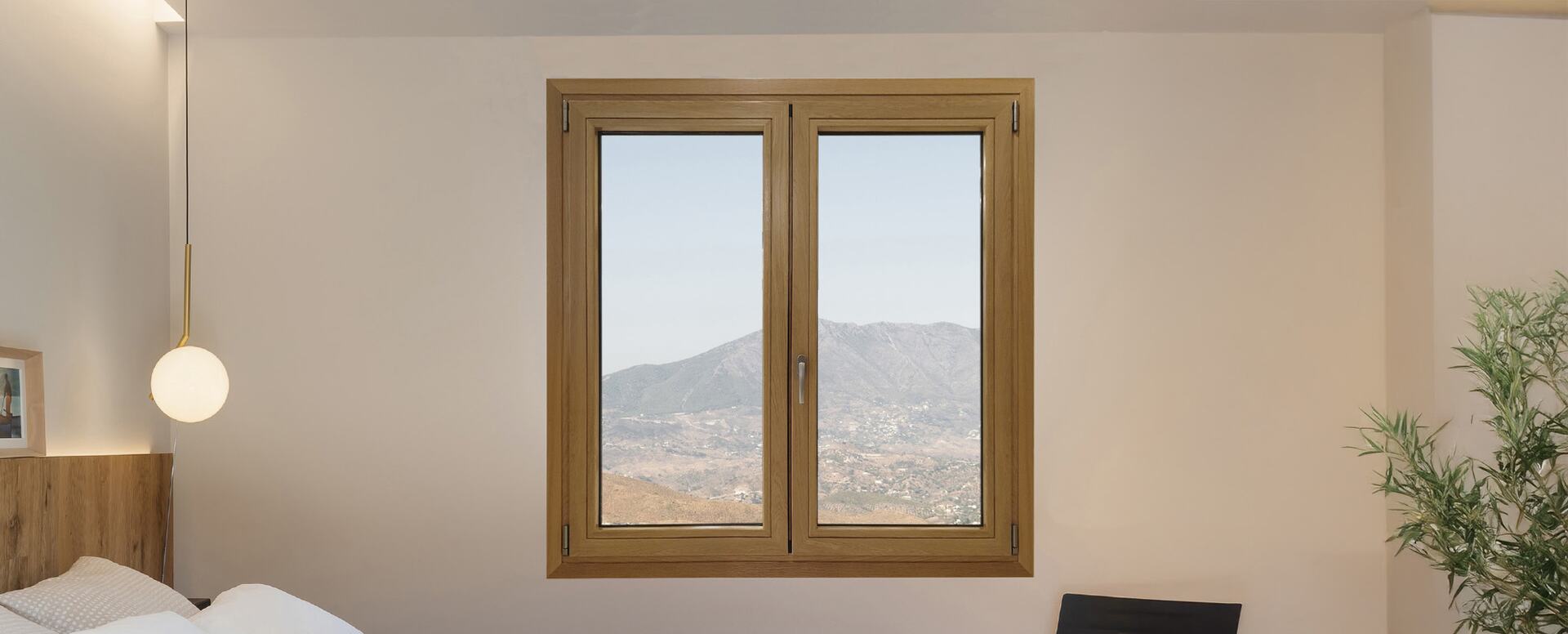

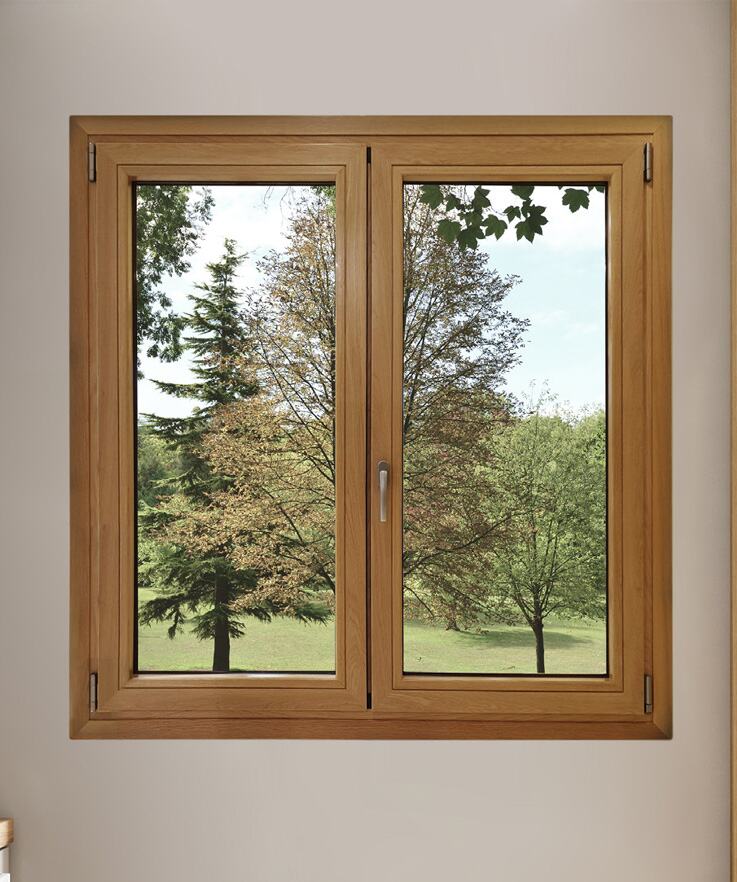

Local images prepared to show the installation, withstruction detail and technical sections of COR Galicia C16.

COR Galicia C16

Would you like to withsider COR Galicia C16 for your home?

Request a quote and we will help you analyse whether this system fits your insulation, comfort, security and design needs.

Request a quote
