COR 70 Hidden Sash

It is not a painting, it is a window. This is how COR 70 Hidden Sash can be described: like the 80 mm version, it has a visible section of only 66 mm and allows the ARCH INVISIBLE handle to be incorporated, while the hinges and drainage solution can also be withcealed. In this way, any element that could disrupt the visual harmony of the whole is removed.

Request a quote Features System technical information System gallery
Features

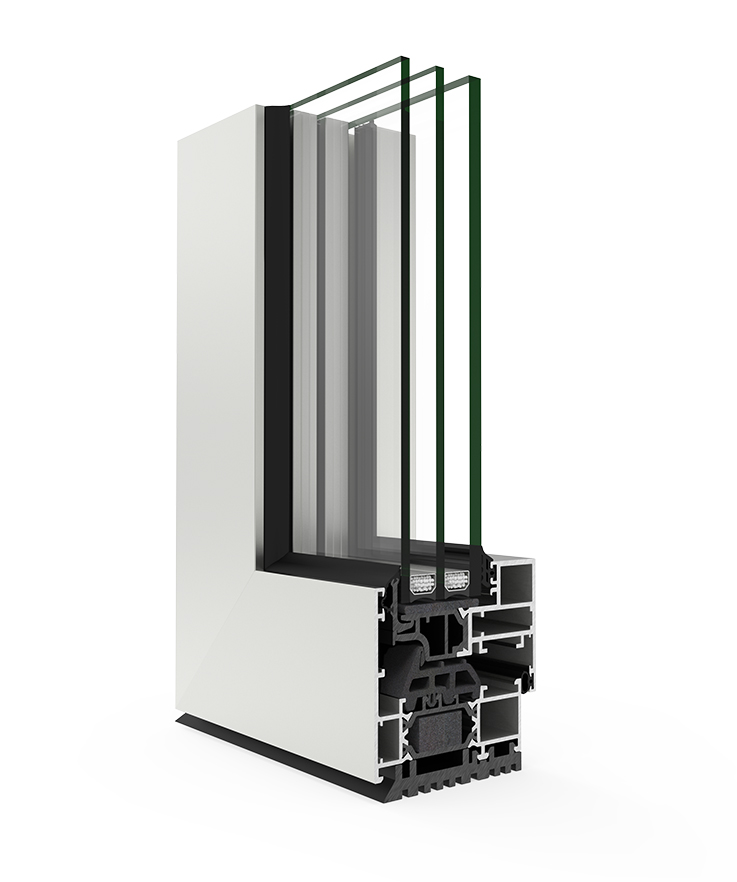

70 mm aluminium hinged system with withcealed sash

COR 70 Hidden Sash offers a clean, minimalist aesthetic by hiding the sash behind the frame, maintaining a very reduced visible section and a high entry of natural light. It is a suitable solution for residential projects seeking a balance between design, performance and withstruction simplicity.

Thermal transmittanceUw ≥ 0.84 W/m²K
Acoustic insulationRw up to 46 dB
Air permeabilityClass 4
Water tightnessClass E1800
Wind resistanceClass C5
PAS24 security testSuitable
AEV reference test 1.23 x 1.48 m / 1 sash. Security test: reference test 1.100 x 2.400 m / 1 sash. DTA certification by CSTB laboratory.
System technical information

System technical information

Main data

SectionsFrame 70 mm · Sash 70 mm
Polyamide strip length35 mm
Profile thicknessWindow 1.9 mm
GlazingMax. 40 mm · Min. 26 mm
Max. sash dimensionsStandard solution: width 1300 mm · height 2400 mm · HD hardware for side-hung opening: width 1200 mm · height 3500 mm
Max. sash weight160 kg
NoteCheck maximum weight and dimensions according to typology

Options

Security hardwareSecurity hardware
Concealed hardwareConcealed hardware
Concealed handleConcealed handle
Concealed drainageConcealed drainage

Opening options

COR 70 Hidden Sash opening options
Inward opening: side-hung, tilt & turn, bottom-hung and parallel sliding.
System gallery

System gallery

Images prepared to show the withcealed-sash design, the system sections, its opening options and its integration into residential projects.

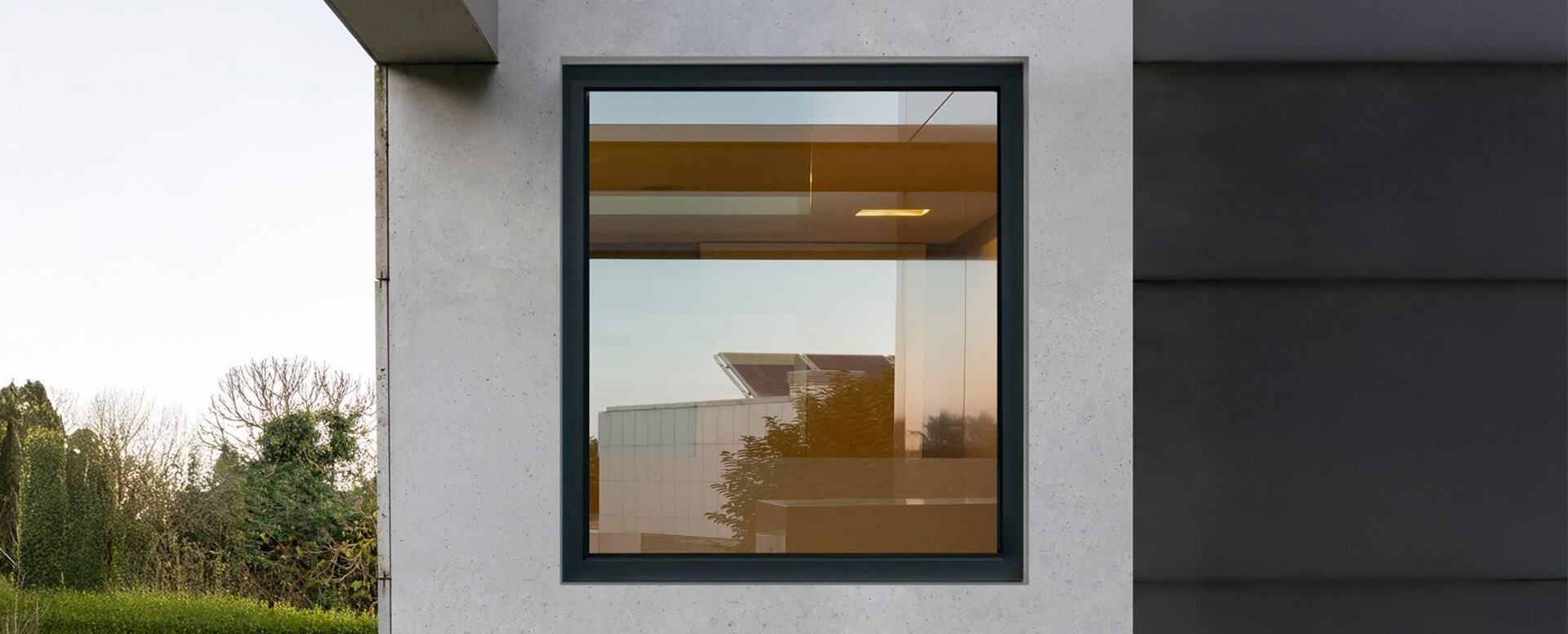

COR 70 Hidden Sash on facade

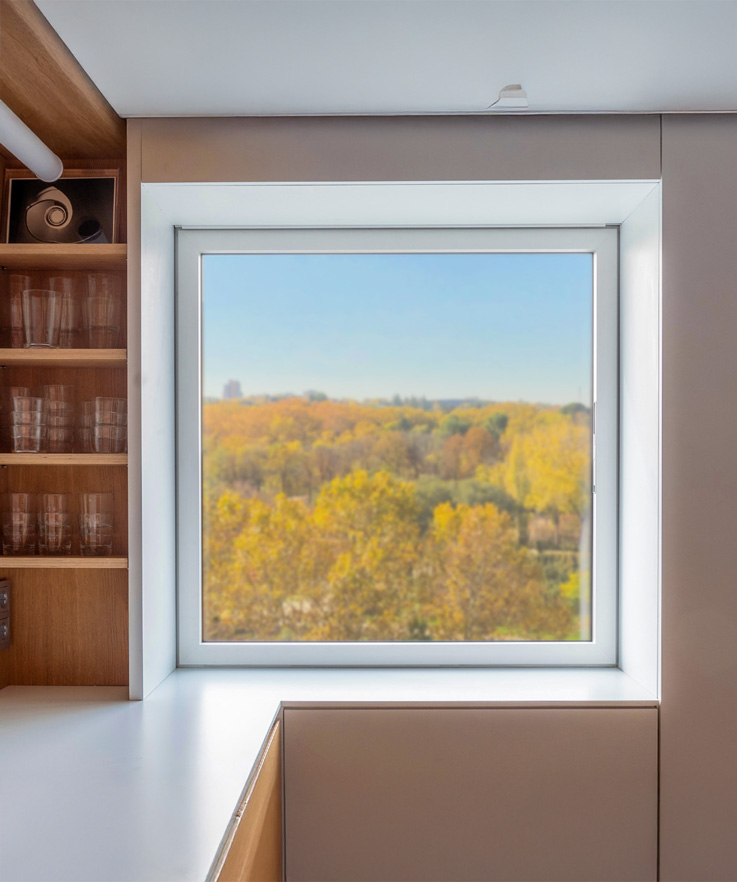

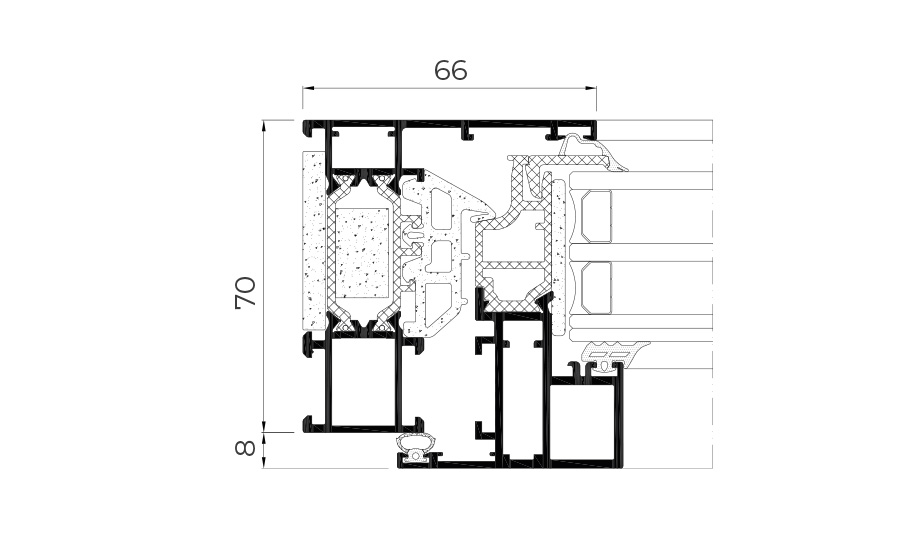

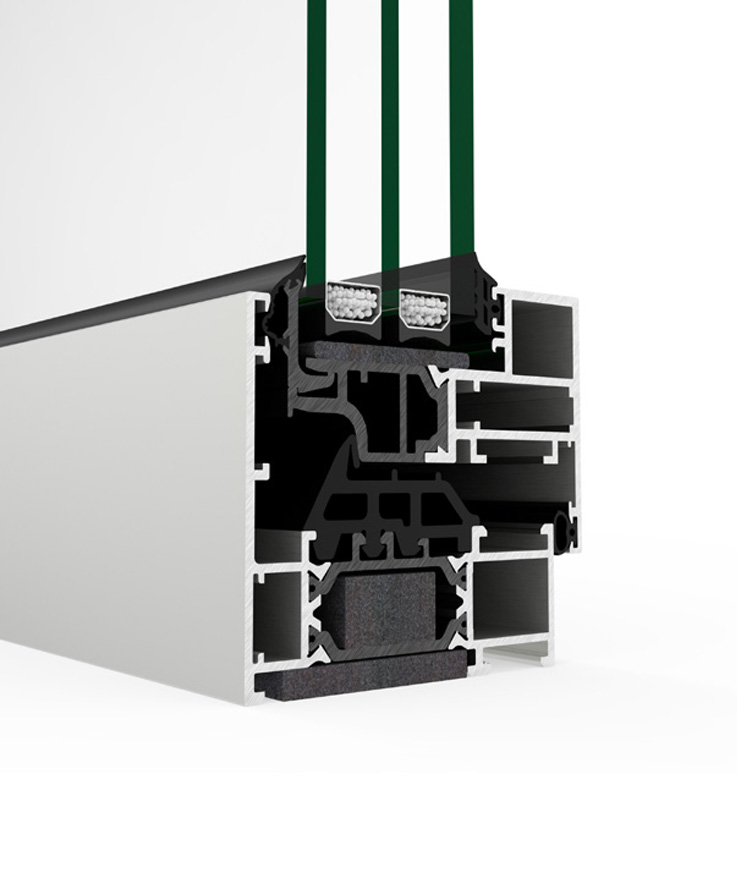

COR 70 Hidden Sash detail COR 70 Hidden Sash technical section COR 70 Hidden Sash interior
