COR 70 Hidden Sash C16 ST
← Back to hinged windows and doors Hinged windows and doors

COR 70 Hidden Sash C16 ST

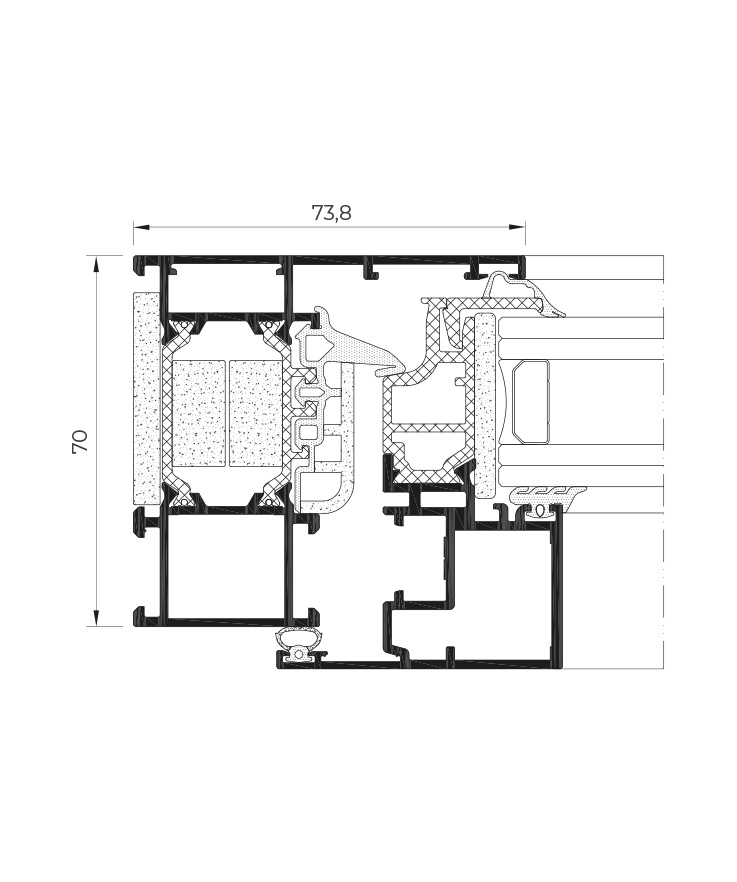

Hidden sash hinged system compatible with any standard channel 16 hardware. Its attractive design withceals the sash behind the frame, reducing the visible aluminium section to 73.8 mm. This makes it possible to achieve a glazed surface of up to 85% of the total window area, helping more light enter the interior. Its avant-garde appearance is complemented by the option of hidden drainage and withcealed hinges.

Request a quote Features System technical information System gallery
Features

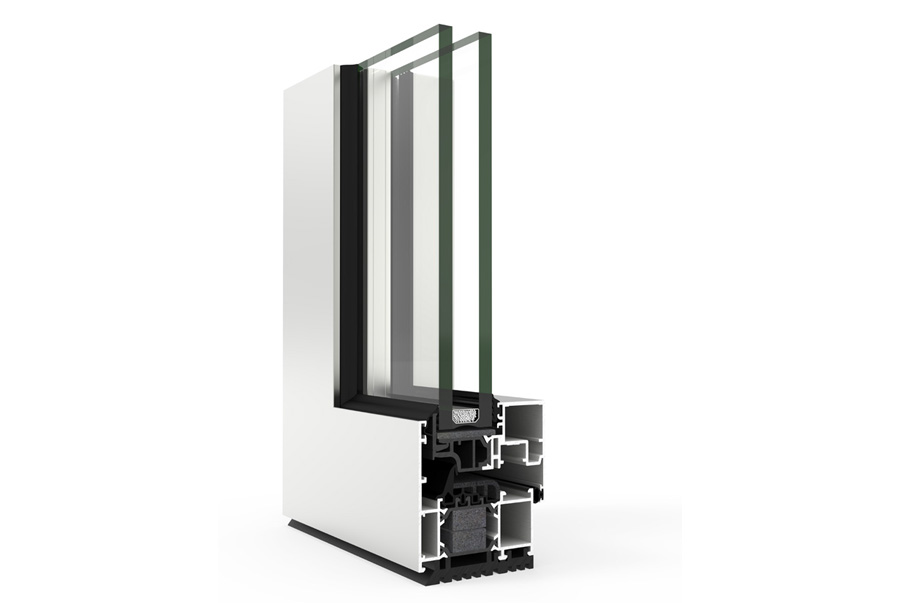

COR 70 Hidden Sash C16 ST hidden sash hinged system

70 mm hidden sash system with standard channel 16 hardware, high thermal and acoustic performance, minimalist aesthetics and maximum natural light.

Thermal transmittanceUw ≥ 0,93 W/m²K
Acoustic insulationRw hasta 45 dB
Air permeabilityClass 4
WatertightnessClass E1200
Wind resistanceClass C5
AEV reference test: 1.23 x 1.48 m / 2 sashes. CSTB laboratory DTA certification.
System technical information

System technical information

Main data

SectionsFrame 70 mm · Sash 70 mm
Polyamide strip length35 mm
Profile thicknessWindow 1,6 mm
GlazingFixed: máximo 40 mm, mínimo 27 mm. Window: máximo 38 mm, mínimo 24 mm.
Maximum sash dimensionsWidth (L) 1300 mm · Height (H) 2400 mm
Maximum sash weight150 kg
NoteCheck maximum weight and dimensions according to typology.

Possibilities

Security hardwareSecurity hardware
Concealed hardwareConcealed hardware
Concealed drainageConcealed drainage

Opening possibilities

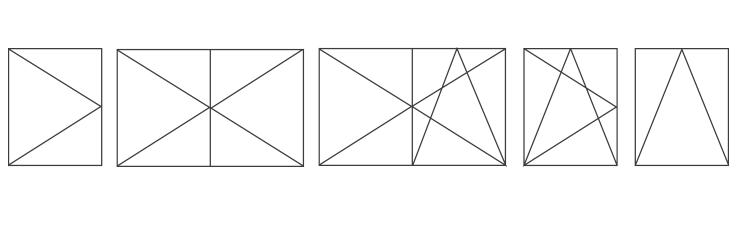

Opening possibilities COR 70 Hidden Sash C16 ST
Side-hung, tilt-and-turn and bottom-hung.
System gallery

System gallery

Local images have been incorporated into the project so the COR 70 Hidden Sash C16 ST page does not depend on external resources.

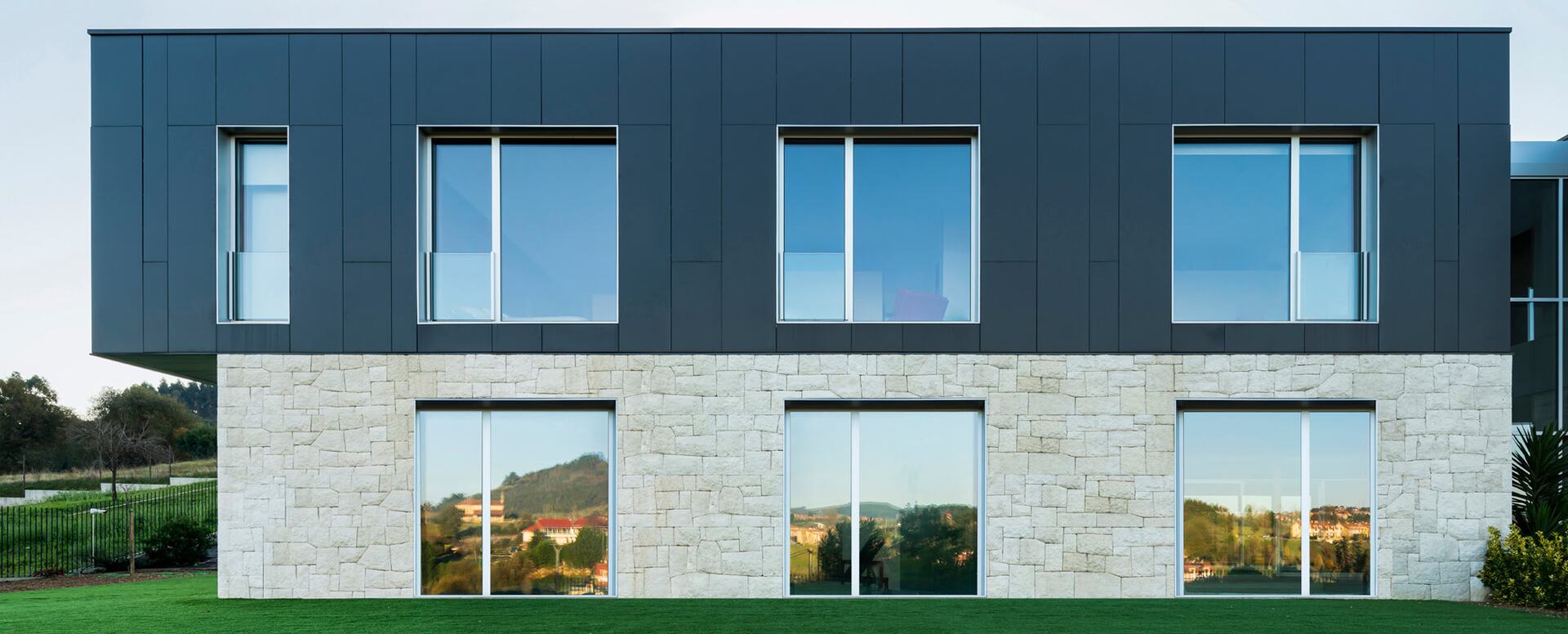

COR 70 Hidden Sash C16 ST instalación
COR 70 Hidden Sash C16 ST detalle de perfilCOR 70 Hidden Sash C16 ST sección técnicaCOR 70 Hidden Sash C16 ST instalación edificio
